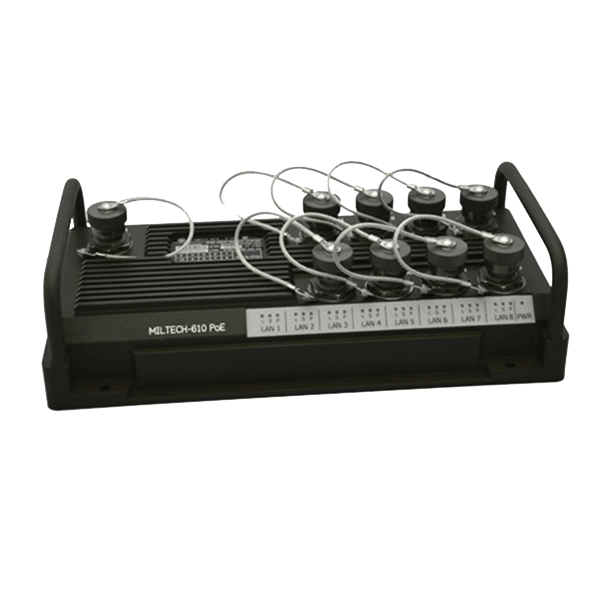

MILTECH 610-PoE Military-Grade Fast Ethernet PoE Switch - 8 Port

Key Features
Product Type:Ethernet switch
Management:Unmanaged
Ports:
8 x 10/100M Copper + PoE
Connectors:
Power: D38999
LAN: D38999
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP67
Dimensions:10.59" X 5.24" X 2.82"269mm X 133mm X 71.7mm
Weight:52.91oz1500g
Operating Temp.:-45°C to 85°C
Power input:24VDC (18 - 32VDC), 5W
Special Features: PoE

The MILTECH 610PoE is a military-grade Power over Ethernet (PoE) switch that supports 30W of PoE on all 8 Fast Ethernet 10/100 Ports - giving a total PoE power budget of 240 watts to power both 802.3af and 802.3at standard devices.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-610PoE-001 Unmanaged 8 x 10/100TX PoE+ switch
1-610PoEM-001 Managed 8 x 10/100TX PoE+ switch
1-610PoEM-101 Enhanced Managed 8 x10/100/1000TX PoE+ switch
MILTECH 610-PoE Additional configurations available
  • 2-CBL610LN3M 2-CBL610LN3M 3M LAN cable, D38999 to RJ45
  • 2-CBL610PW3M 2-CBL610PW3M 3M Power cable MILTECH610, D38999
Description
The MILTECH 610-POE is ideal for mobile Ethernet equipped platforms, such as vetronic, ground vehicles and aerial applications where traditional power sources have limited availability and supports. It simplifies cabling and reduces space requirements in mobile military platforms by using a single CAT 5 Ethernet cable connected to a data port to provide both data connection and electrical power to the networked devices. It adheres to COTS guidelines for PoE-enabled cameras, WiFi access points, mesh nodes and other devices. Developed for military and harsh environment applications, the MILTECH 610-PoE complies with MIL-STD-810F, MIL-STD-461E, MIL-STD-1275B airborne, ground mobile environmental, EMI/RFI compliance for high reliability. The unit has been especially hardened to improve ingress, impact, and shock/vibration protection.
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
