MILTECH 708 Military Rugged Fast Ethernet Unmanaged Switch - 8 Port

Key Features
Product Type:Ethernet switch
Management:Unmanaged
Ports:
8 x 10/100M Copper
Connectors:
Power: D38999
LAN: D38999
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP67
Dimensions:10.59" X 5.24" X 2.82"269mm X 133mm X 71.7mm
Weight:52.91oz1500g
Operating Temp.:-45°C to 85°C
Power input:24VDC (18 - 32VDC), 2.8W

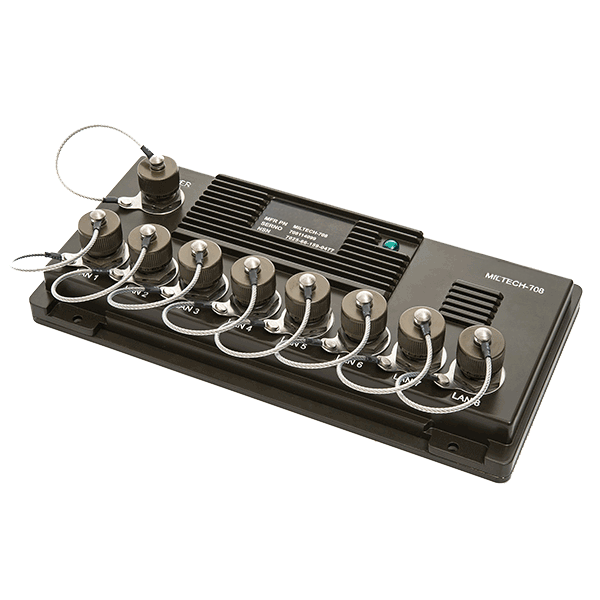

The MILTECH 708 is an IP67 Fast Ethernet switch with 8 x 10/100Mbps ports.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-708-000 MILTECH708, military Rugged, 8 x 10/100TX, Switch
MILTECH 708 Additional configurations available
Description
The MILTECH 708 is ideal for battlefield C4ISR, voice, video, and sensor data acquisition, and communications in military platforms to provide unmanaged local area network (LAN) connectivity to IP-enabled computing and net-centric devices.

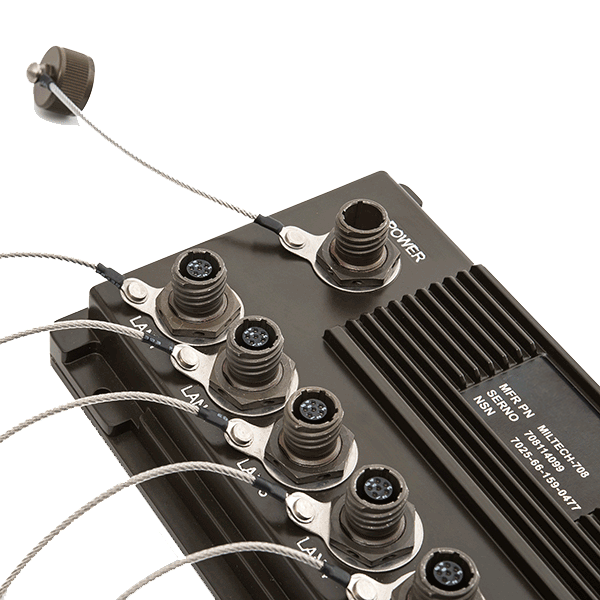

The MILTECH 708 operates on readily available 24VDC power and supports MIL-STD1275 so that it may be powered directly from any available battery in the field. The unit's mechanical packaging enhancements, including ruggedized D38999 circular connectors deliver IP67 and MIL-STD-810F airborne and ground environmental compliance for high reliability.
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
