MILTECH 907 Compact Military Managed Ethernet Switch with single D-Type 44 Pin Connector - 5 Ports

Key Features
Product Type:Ethernet switch
Management:Unmanaged
Ports:
5 x 10/100/1000M Copper
Connectors:
Power: HD-Type
LAN: HD-Type
Designed to Meet:MIL-STD-810 | MIL-STD-461
Dimensions:4.45" X 2.13" X 1.57"113mm X 54mm X 40mm
Weight:8.82oz250g
Operating Temp.:-45°C to 85°C
Power input:24VDC (16 - 36VDC), 5W

The MILTECH 907 is a MIL-STD, fully managed military-grade network switch offering 5 triple-speed (10/100/1000Mbps) ports.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-907-000 Managed Military Grade Gigabit Ethernet Switch, 5 x 10/100/1000TX
MILTECH 907 Additional configurations available
Description

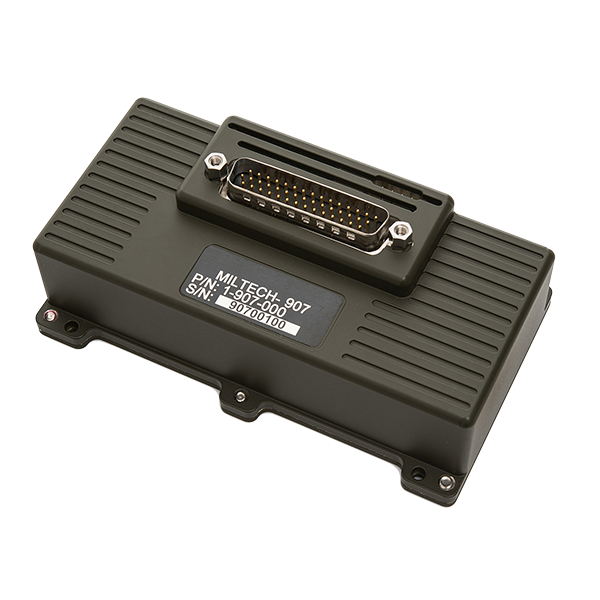

The MILTECH 907 enables interconnectivity of network devices and data transmission in military platforms with one high density D-Type 44 pin connector. It can be remotely managed to optimize communications and prioritize critical information traffic. Advanced network features, never before found in a package of this size, include switching protocols, virtual LANS (VLANS), traffic prioritization (QoS), and bandwidth aggregation are standard.

The MILTECH 907’s gigabit speeds and 24VDC power make it instantly compatible with network device and power systems. Its mechanical packaging enhancements, including High Density D-Type 44 pin connector, is designed for MIL-STD-810F airborne and ground environmental compliance and high reliability. ​
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us at (603) 267-8865 to discuss your requirements. Configurations created for specific requirements will be assigned a new variant part number.
