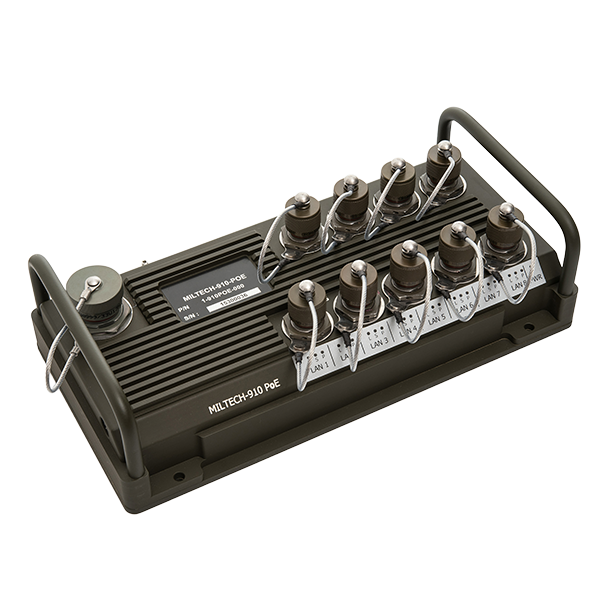

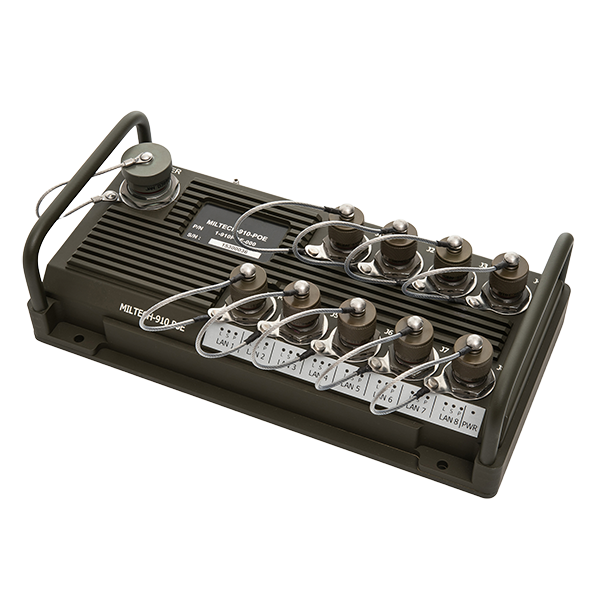

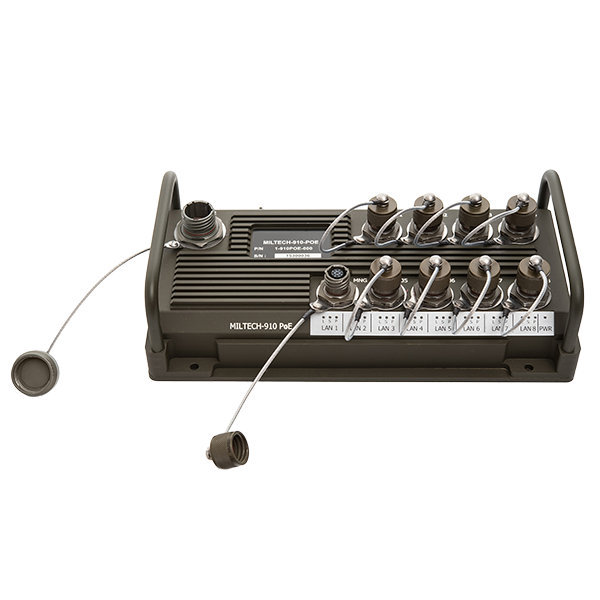

MILTECH-910-PoE Rugged Managed PoE+ Gigabit Ethernet Switch - 8 Port

Key Features
Product Type:Ethernet switch
Management:Managed
Ports:
8 x 10/100/1000M Copper + PoE
Connectors:
Power: D38999
LAN: RTV07RW9-9SS25
Management: RS-232
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:10.59" X 5.24" X 2.8"269mm X 133mm X 71mm
Weight:42.33oz1200g
Operating Temp.:-45°C to 85°C
Power input:24VDC (18 - 32VDC), 330W

The MILTECH 910-PoE is a rugged Power over Ethernet (PoE) switch that supports 60W of PoE on all 8 Gigabit Ethernet 10/100/1000 ports. It is specifically designed for complex traffic applications featuring IEEE-STD-1588 (PTP) Capabilities and Synchronous Ethernet (SyncE).

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-910PoE-000 Military Managed PoE+ Gigabit Ethernet Switch, 8 x10/100/1000TX
1-910PoE-100 Enhanced Military Managed PoE+ Gigabit Ethernet Switch, 8 x10/100/1000TX
MILTECH-910-PoE Additional configurations available
  • 2-CBL910PoEMNG 2-CBL910PoEMNG LAN and management harness
  • 2-CBL910PoELN 2-CBL910PoELN LAN Harness for MILTECH910PoE
  • 2-CBL910PoEPW 2-CBL910PoEPW Power Harness for MILTECH910PoE
Description

The MILTECH 910-POE simplifies cabling and reduces space requirements in mobile Ethernet-equipped platforms. By using a single CAT 5 Ethernet cable connected to a data port it provides both data connection and electrical power to the networked devices such as vetronic, ground vehicles and aerial applications where traditional power sources have limited availability.

The MILTECH 910-POE's intelligent design allows it to be configured to support up to 60W of PoE on any port up to a maximum power budget of 330 watts in total. It supports both 802.3af and 802.3at standard devices for PoE-enabled cameras, Wi-Fi access points, tactical IP phones, mesh nodes and other devices.

The MILTECH 910-PoE is fully managed with advanced network features such as switching protocols, virtual LANS (VLANS), traffic prioritization, and bandwidth aggregation. It provides full PoE protocol management with dynamic power allocation and power priority settings on each port.



Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
