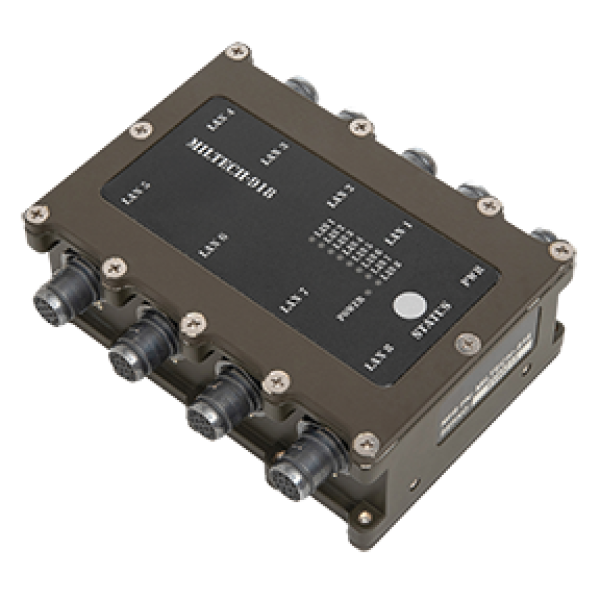

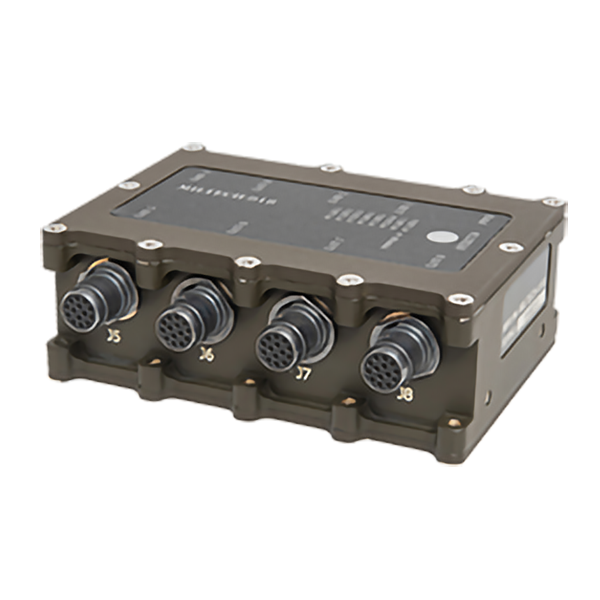

MILTECH 918 Small Military-Grade, Layer 2 fully managed Gigabit Ethernet switch - 8 Port.

Key Features
Product Type:Ethernet switch
Management:Managed
Ports:
8 x 10/100/1000M Copper
Connectors:
Power: SCE2
LAN: SCE2
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:3.94" X 3.5" X 1.42"100mm X 89mm X 36mm
Weight:13.76oz390g
Operating Temp.:-45°C to 85°C
Power input:24VDC (16 - 36VDC), 8W

The Miltech 918 is a fully managed military grade Layer 2 Ethernet switch with advanced Layer 3 static routing capabilities. It has 8 triple-speed (10/100/1000Mbps) ports and use 4VDC power.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-918-000 Managed 16VDC - 36VDC
1-918-001 Managed 16VDC - 36VDC Dual Power Input
1-918-002 Managed 12VDC - 36VDC
1-918-100 Enhanced Managed 16VDC - 36VDC
1-918-101 Enhanced Managed 16VDC - 36VDC Dual Power Input
1-918-102 Enhanced Managed 12VDC - 36VDC
MILTECH 918 Additional configurations available
  • 2-CBL9028LAN 2-CBL9028LAN 3M lan harness
  • 2-CBL918PWR3M 2-CBL918PWR3M 3M power harness
  • 2-CBL9028LN+ 2-CBL9028LN+ 3M lan and console harness, SCE2 to RJ45 + DB9
Description

The MILTECH 918 is an 8 port ethernet switch which can be remotely managed to deliver Layer 2 switching to optimize on-vehicle communications traffic prioritization between IP-based devices such as communication and navigation systems, sensors, video cameras and targeting systems.

Advanced network features, never before found in a package of this size, include switching protocols, virtual LANS (VLANS), traffic prioritization (QoS), and bandwidth aggregation are standard. Layer 3 static routing enables on-device IPv4 and IPv6 static routing between VLANs without having to add a router upstream. This further reduces the amount of equipment, weight, and expenditures on mobile military platforms.

With the best combination of size, weight, and cost (SWaP-C) in the industry, it saves valuable real estate in mobile platforms with space and weight limitations such as: Unmanned and compact aerial platforms, mobile ground vehicles and UGVs and autonomous surface and underwater craft.

Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us at (603) 267-8865 to discuss your requirements. Configurations created for specific requirements will be assigned a new variant part number.
