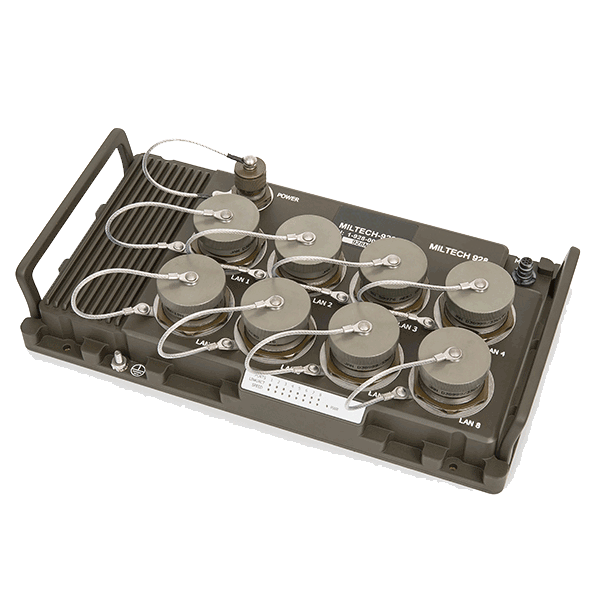

MILTECH 928 Military Gigabit Ethernet Managed 8 Port Switch with RJFTV Connectors

Key Features
Product Type:Ethernet switch
Management:Managed
Ports:
8 x 10/100/1000M Copper
Connectors:
Power: D38999
LAN: RJFTV
Management: RS-232
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP67
Dimensions:11.3" X 5.79" X 1.97"287mm X 147mm X 50mm
Weight:38.8oz1100g
Operating Temp.:-45°C to 85°C
Power input:24VDC (18 - 32VDC), 7W

The MILTECH 928 is a MIL-STD, fully managed Ethernet switch. It has 8 individual triple speed (10/100/1000) ports using RJFTV (RJ-45 in MIL-D38999) connectors.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-928-000 Manage Military Grade Gigabit Switch, 8 x 10/100/1000TX
MILTECH 928 Additional configurations available
Description
The MILTECH 928 serves as a robust COTS solution for providing local area network (LAN) connectivity to IP-enabled computing and net-centric devices in ground vehicle and airborne applications.

It is compatible with all the newest industry network protocols for redundant link topology, security, multicast and management requirements.

Developed specifically for military and harsh avionic applications, the MILTECH 928 features MIL-STD-810F, MIL-STD-461E, MIL-STD-1275B airborne, ground mobile environmental, and EMI/RFI compliance for high reliability. The unit has been especially hardened to improve ingress, impact, and shock/vibration protection, and all moving parts have been eliminated through passive cooling.
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
