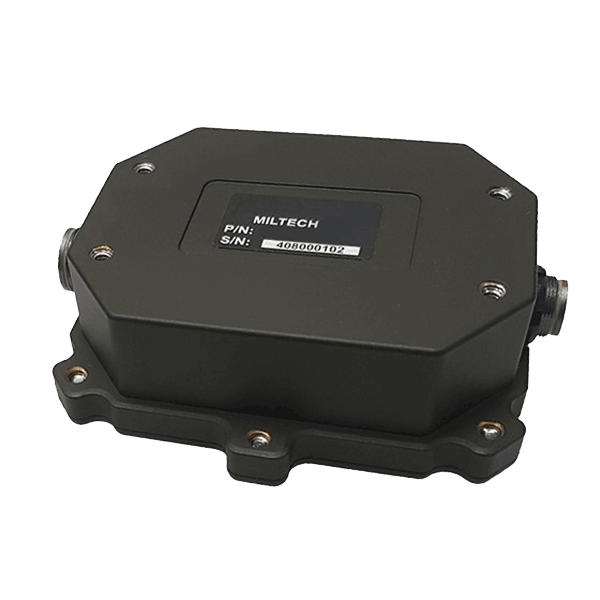

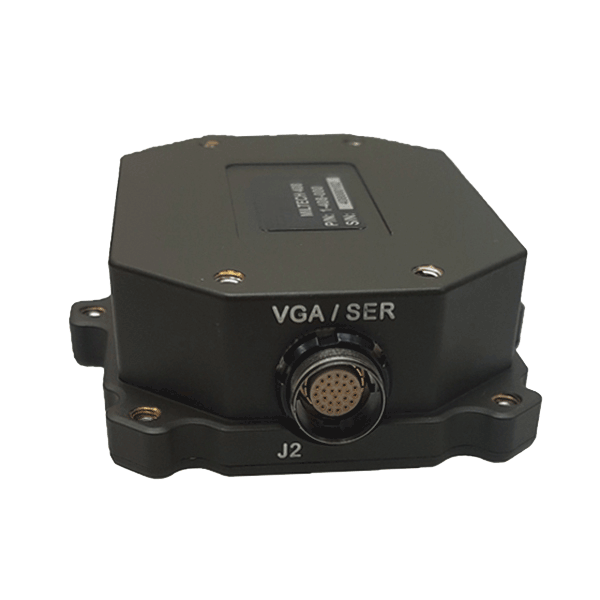

MILTECH VGA Military Rugged USB2/3 to VGA & Serial Converter

Download Data Sheet Here
Key Features
Product Type:Media converter
Management:Unmanaged
Ports:
1 x USB2/3
1 x VGA
1 x Serial
Connectors:
Power: ODU
USB: ODU
Serial: ODU
VGA: ODU
Designed to Meet:MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:2.99" X 2.8" X 0.98"76mm X 71mm X 25mm
Weight:4.76oz135g
Operating Temp.:-40°C to 85°C
Power input:5VDC, 2.5W
Power output:6/8VDC, 2A per port

The MILTECH VGA is a rugged USB 2/3 to VGA and Serial Converter enables to connect a USB device (such as laptop, desktop) with a VGA or Serial RS232/422/485/LVTTL device.

Standard Configurations
Model Description
1-VGA-000 Military Rugged USB2/3 to VGA and Serial Converter
MILTECH VGA Additional configurations available
Description
Data and information visualization between different platforms in battlefield and command centers is necessary for modern warfare. The MILTECH VGA is a multi-monitor solution, extending working space with split-screen, mirroring display, etc. Developed for harsh environments, the MILTECH VGA is designed for MIL-STD-810G airborne and ground environmental compliance and high reliability.

It also provides 6V/8V power output which eliminates the need for power adapter.
