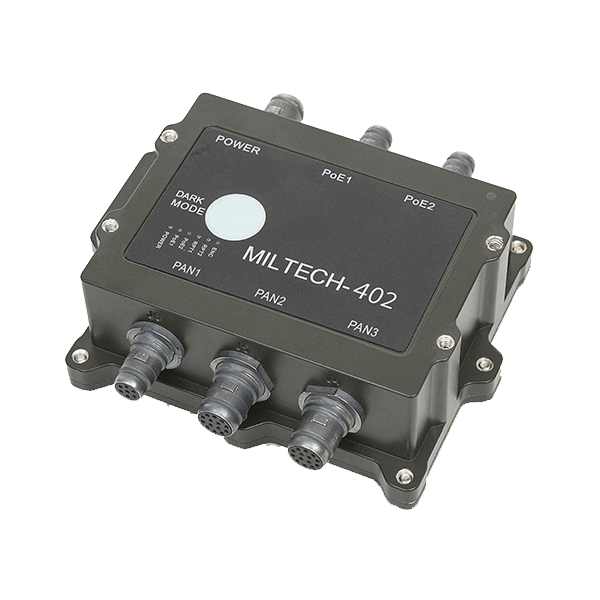

MILTECH 402 Miniature Rugged PoE Ethernet Switch with Power Distribution

Download Data Sheet Here
Key Features
Product Type:Ethernet switch
Management:Unmanaged
Ports:
2 x 10/100M Copper + PoE
3 x 10/100M Copper
Connectors:
Power: SCE2
LAN: SCE2
Designed to Meet:MIL-STD-810 | MIL-STD-461 | IP67
Dimensions:3.94" X 3.7" X 1.34"100mm X 94mm X 34mm
Weight:9.88oz280g
Operating Temp.:-40°C to 85°C
Power input:12VDC (10 - 16.8VDC), 3W
Special Features: PoE

The MILTECH 402 is a rugged, military-grade Fast Ethernet switch with PoE and 5VDC power distribution available over the Ethernet ports.

Standard Configurations
Model Description
1-402-000 5 x 10/100 Fast Ethernet Switch + PoE & Power Supply
MILTECH 402 Additional configurations available
Description
Combining LAN and power distribution and weighing less than 10 ounces, the MILTECH 402 drastically lightens the load and reduces cabling complexity in soldier carry applications. Once connected to a military-grade 10-16.8VDC smart battery supply (4 cell Li-ION), it uses dynamic power allocation to provision 2 LAN channels with PoE (15.4 watt each), 2 LAN channels with 16.8 Vdc/5A (Vbat) and1 LAN channel with 5V/1.5A up to a maximum power budget of 35W.

The MILTECH 402 is IEEE 802.3 compliant. Networking features include full wire-speed forwarding rate (26.8 Mpps), store-and-forward, Auto MDX-II/MDI-X, auto negotiation, and address look-up.

The MILTECH 402 weighs less than 10 ounces including connectors and hardware and measures 3.93” x 3.7” x 1.34”. It meets MIL-STD 810F/G/GM, and MIL-STD 461 specifications.
