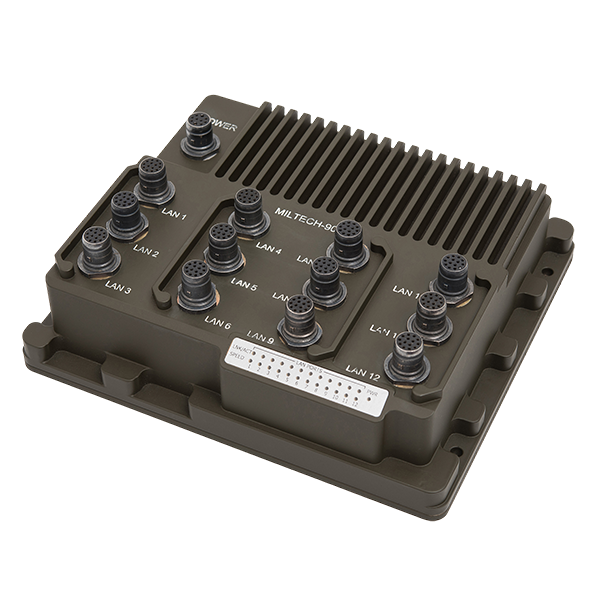

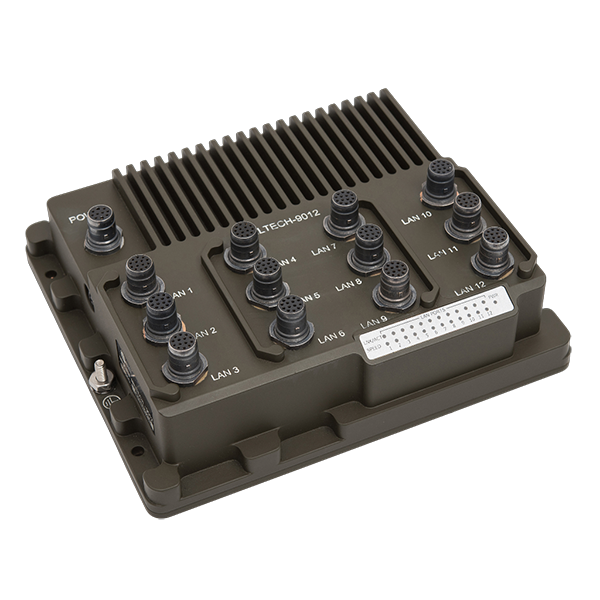

MILTECH 9012 Compact Military Managed Gigabit Ethernet Switch/Router - 12 Port

Key Features
Product Type:Router
Management:Managed
Ports:
12 x 10/100/1000M Copper
Connectors:
Power: SCE2
LAN: SCE2
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:6.55" X 5.67" X 2.2"166.4mm X 144mm X 56mm
Weight:38.8oz1100g
Operating Temp.:-45°C to 85°C
Power input:24VDC (18 - 70VDC), 13W

The MILTECH 9012 is a member of the MILTECH 9012 family that offers flexible alternatives for LAN, LAN/WAN, and customizable networking. All family members are MIL-STD, fully managed, and military grade, with 12 triple-speed (10/100/1000Mbps) ports. The MILTECH 9012 is a unique combination of both a Layer 2 Ethernet switch and a Layer 3 Ethernet router. This highly-integrated, compact form factor switch/router saves valuable real estate on mobile military platforms including:
Battle management systems (BMSs), UAVs, Manned and autonomous land vehicles (UGVs), Robots, Mobile equipment fielded in harsh environment.
It is an ideal solution for connecting IP-based voice, video, sensor data acquisition, and other communication devices that require both on-vehicle LAN management and off-vehicle WAN connectivity.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
MILTECH 9012 Additional configurations available
  • 2-CBL9012CLAN 2-CBL9012CLAN 3M lan harness
  • 2-CBL9012PWR 2-CBL9012PWR 3M power harness
  • 2-CBL9012CLN+ 2-CBL9012CLN+ 3M lan and console harness, SCE2 to RJ45 + DB9
Description

The MILTECH 9012 switching and routing capabilities, includes virtual LANS (VLANS), traffic prioritization/QoS, IPv4/IPv6 dynamic routing, and bandwidth aggregation. It supports all the latest networking protocols for redundancy, security, multicast, and management. Remote management allows for centralized traffic optimization and prioritization of mission-critical data.

The MILTECH 9012 uses industry-standard 24VDC power and is designed for MIL-STD-810F, MIL-STD-461E, MIL-STD-1275B & MIL-STD-704A airborne, ground mobile environmental, EMI/RFI compliance with high reliability.

Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
