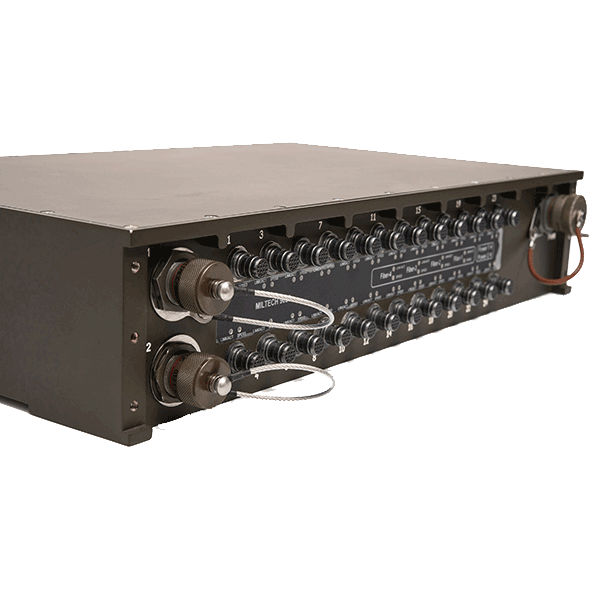

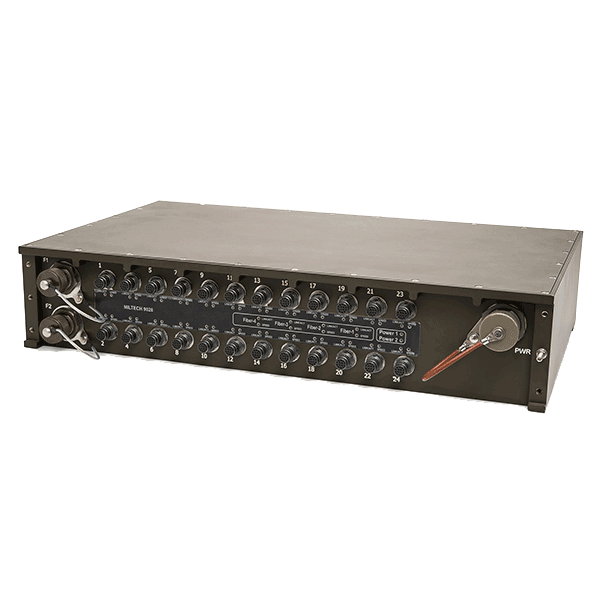

MILTECH 9028 Rugged Military Managed 24 Ports Router with 4 x 10G Fiber Ports

Key Features
Product Type:Router
Management:Managed
Ports:
24 x 10/100/1000M Copper
4 x 1/10G Fiber
Connectors:
Power: D38999
LAN: SCE2
Fiber: Multiple options
Designed to Meet:MIL-STD-1275 | MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | IP67
Dimensions:19" X 11.18" X 3.49"482.6mm X 283.97mm X 88.65mm
Weight:194.01oz5500g
Power input:24VDC (18 - 32VDC)
220VAC (90 - 230VAC)
30W

The MILTECH 9028 is a rugged military rack-mount 10GbE router with 24 triple-speed (10/100/1000Mbps) ports and 4x10Gbps fiber optic ports for applications that must support high-speed data traffic.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-9028-XXXXX Managed 10G router
MILTECH 9028 Additional configurations available
  • 2-CBL9028LAN 2-CBL9028LAN 3M lan harness
  • 2-CBL9028PWR 2-CBL9028PWR 3M power harness
  • 2-CBL9028LN+ 2-CBL9028LN+ 3M lan and console harness, SCE2 to RJ45 + DB9
Description
The MILTECH 9028 is ideal for mobile platforms and shipboard systems that deal with high resolution video and other data-intensive signaling. It features both L2/L3 network switching and routing capabilities, including virtual LANS (VLANS), traffic prioritization/QoS, IPv4/IPv6 support, and bandwidth aggregation. It supports all the latest networking protocols for redundancy, security, multicast, and management. Its 1GE/10GE transmission speeds and 24VDC power make it instantly compatible with network devices and power systems. An optional redundant power connection adds to overall system survivability. The unit is designed for MIL-STD-810F, MIL-STD-461E, MIL-STD-1275B airborne, ground mobile environmental, EMI/RFI compliance and high reliability.
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
