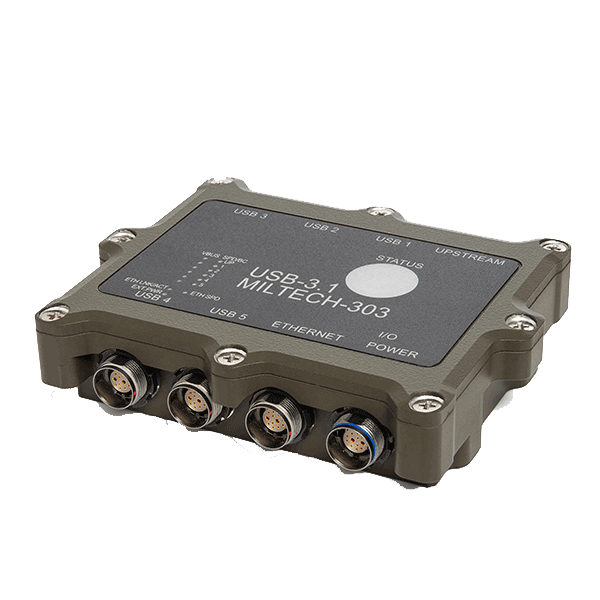

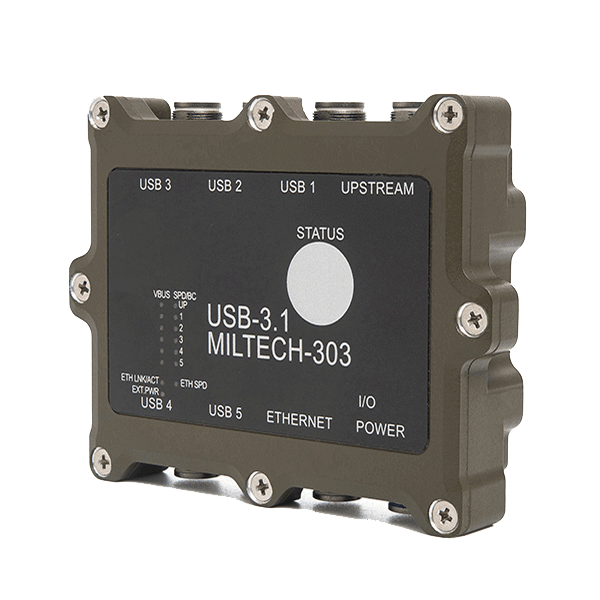

MILTECH 303 Military Rugged USB 3.2 HUB with Robust Power Management and Charging

Download Data Sheet Here

Key Features

ImperialMetric

Product Type:	USB
Management:	Unmanaged
Ports:	1 x USB 3.1/3.2 upstream port 5 x USB 3.1/3.2 downstream ports 1 x Ethernet 10/100/1000M port via USB to LAN Bridge 1 x IO port for I2C/SPI/GPIO/External Power Input
Connectors:	USB: ODU
Designed to Meet:	MIL-STD-810 \| MIL-STD-461 \| IP68
Dimensions:	3.54" X 2.76" X 0.83"89.8mm X 70.2mm X 21.2mm
Weight:	5.96oz169g
Operating Temp.:	-40°C to 85°C
Power input:	5VDC
Power output:	5VDC, 15A per port
Special Features:	Battery charge

MILTECH 303 is a Military Rugged USB 3.1/3.2HUB with robust power management and charging. It has 5 x USB 3.1/3.2 ports, 1 Gigabit Ethernet port, and a dedicated IO port.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

Standard Configurations

	Model	Description
	1-303-001	MIL-STD Rugged USB 3.2 Hub
	MILTECH 303	Additional configurations available

2-CBL303PWR Power harness
2-CBL303M64USB MILTECH303 to MILTECH M64 USB3.2 Cable
2-CBL303PWRGPIO Power harness
2-CBL303LAN LAN harness
2-CBL303USBDO USB downstream harness
2-CBL303USBUP USB upstream harness

Description

The MILTECH 303 enables connectivity, robust power management and charging for multiple USB 3.1/3.2 devices (such as portable handhelds, sensors, storages, human interface devices, night vision goggles and GPS).

It has wide voltage range of 12-28VDC and up to 2A downstream power per port. It supports the four most popular battery charging profile including DCP, CDP, SDP and custom profiles via SMBus or OTP to power and charge USB devices. It features mechanical packaging enhancements designed for MIL-STD-810F airborne and ground environmental compliance and high reliability.

Resources

MILTECH 303 Data Sheet

Tailored Products to Meet Your Requirements

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
