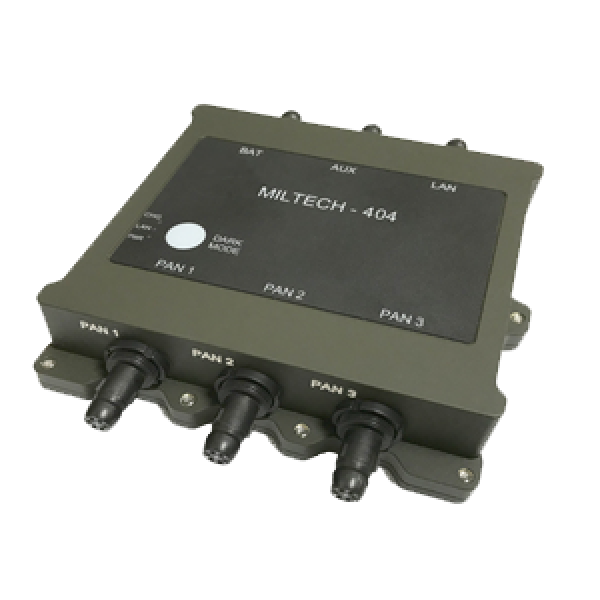

MILTECH 404 Integrated Soldier Power and Data Management System (ISPDS) with Integrated SOM

Key Features
Product Type:USB
Management:Managed
Ports:
Communications Hub with on-board Linux Processor & Power
1 x 10/100 (Fast Ethernet) port
3 x USB2.0
1 x Serial, RS-232
1 x External power source input (including SMBUS V.2.0),internal charger
*All ports provide both Vbat and 5Vdc according to net-warrior pin-out
Connectors:
6 pin arrangement: Netwarrior
Designed to Meet:MIL-STD-1275 | MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:4.61" X 4.85" X 0.98"117mm X 123.2mm X 25mm
Weight:10.58oz300g
Operating Temp.:-45°C to 85°C
Power input:24VDC (18 - 28VDC), 15W
2 x Battery: 8 - 18VDC
Power output:5VDC, 5A per port
2 x Vbat (8 - 18VDC), 6A per port
Special Features: Battery charge
ISPDS

The MILTECH404 is an integrated soldier power and data management system (ISPDS) combining USB, serial, and internal SOM along with full smart power management for infantry soldiers.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-404-002 Integrated Soldier Power and Data Management System (ISPDS) with Integrated SOM
MILTECH 404 Additional configurations available
  • 2-CBL404BAT 2-CBL404BAT Battery harness
  • 2-CBL404LAN 2-CBL404LAN LAN harness
  • 2-CBL404PAN 2-CBL404PAN PAN 1-3 Harness
  • 2-CBL404AUX 2-CBL404AUX AUX Harness for MILTECH 404
Description
The MILTECH 404 comes equipped with 1X 10/100 fast Ethernet port, 3X USB 2.0 ports, 1X serial (RS232) port, and 1 external power source input. All ports provide both Vbat and 5Vdc according to Nett Warrior pin out. It has an powerful internal SOM running Linux OS for full power management and open platform to support additional field-deployed tactical application. All ports provide both Vbat and 5Vdc according to Nett Warrior pin out.
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
