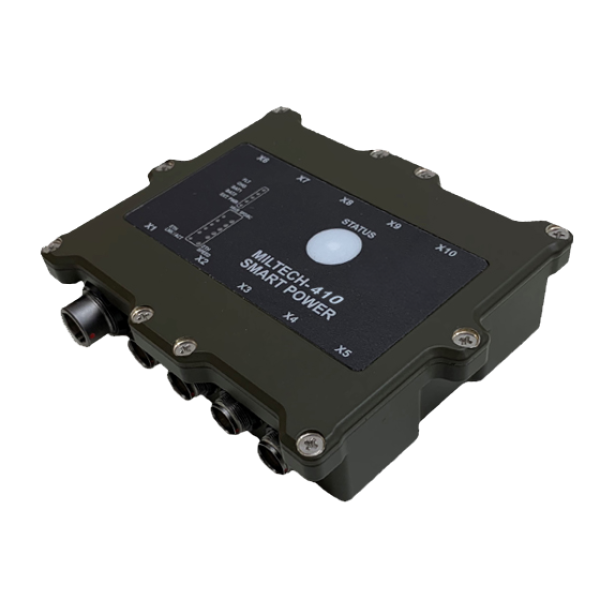

MILTECH 410 Integrated Soldier Power and Data Management System (ISPDS) With USB.3.0 and 1G LAN Capabilities

Key Features
Product Type:USB
Management:Managed
Ports:
1 x Up to 2 battery input | GK1YAR-P16UC00-000L
1 x External power input and battery charge | GK0WAM-P09UM00-000L
1 x LAN 1Gb | GK0WAM-P12UM00-000L
1 x 10.8-12.6Vdc (Vbat) Power supply | GK0WAM-P12UM00-000L
5 x USB 3.0 downstream ports | GK0WAM-P12UM00-000L
1 x USB 3.0 upstream + 12V/1A power supply | GK0WAM-P12UM00-000L
Connectors:
:
Designed to Meet:MIL-STD-1275 | MIL-STD-810 | MIL-STD-461 | IP68
Dimensions:4.54" X 3.58" X 1.06"115.2mm X 91mm X 26.9mm
Weight:11.64oz330g
Operating Temp.:-40°C to 80°C
Power input:24VDC (12 - 32VDC), 5W
2 x Battery: 8 - 16.8VDC
Power output:5VDC, 5A per port
2 x Vbat (8 - 16.8VDC), 6A per port
Special Features: Battery charge
ISPDS
Internal SOM

The MILTECH410 is an integrated soldier power and data management system (ISPDS) with combining 1G LAN, USB3 and SMBUS communication for infantry soldiers. The MILTECH 410 has the ability to prioritize energy supply to the different devices. In addition, the unit can be hooked up to an external power source and charges the input batteries.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution to fit your needs

CONTACT US TODAY
Standard Configurations
Model Description
1-410-000 Integrated Soldier Power and Data Management System (ISPDS) with USB3.0 and 1G Capabilities
MILTECH 410 Additional configurations available
Description
The MILTECH410 outfits soldiers in the digital battlefield with a lightweight, fully integrated infantry combat ISPDS systems. As ISPDS, it supplies 1 Ethernet port, 1 USB 3.0 upstream + 12V/1A power supply, 5 USB 3.0 downstream ports, up to 2 battery input and and 1 external power source. Measuring just 4.54” x 3.58” x 1.06” the MILTECH 410 can connect up to 5 devices, one external power source, manages critical power and battery charging information that has become critical to the success of the soldier modernization efforts.
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.

Learn More
