M1012 Series Uninterruptible Power Supplies Single Phase

Key Features
Product Type:UPS
Input:AC
Output(s):One
Output Power:1.25kW
Filters:EMI Filters Included
Efficiency:79%
Operating Temp.:-20°C to 50°C
Designed to Meet:MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | RTCA-DO160
Standard Configurations
Model Power
M1012 Additional configurations available

* All of our products can be configured to comply with EU REACH regulations. Contact Us today to learn more.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY
Base Specifications
Form Factor:1U
Weight:36lbs16329.31g
Dimensions:19" X 24" X 1.72"482.6mm X 609.6mm X 43.69mm
Current Share:Optional
Power Factor:0.98
Holdup:10min up to 1250W
Communication Protocol: RS-232, Ethernet optional
*

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Output Range(V min to V max @ A max)
#1 115V to V @ 11A
Description

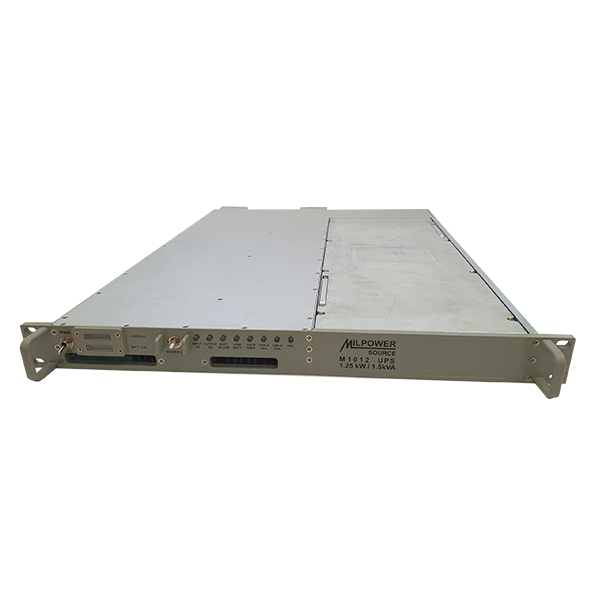

M1012 is a military grade rugged 1.25kW/1.5kVA full double conversion on-line 1U UPS. It has internal modular design, which allows it to be easily tailored to almost any customer requirement, while delivering stable, regulated and protected output voltage for the load

Resources
3D Model (STEP file)
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
