M4703 Series VITA 62 VPX SOLUTIONS

Key Features
Product Type:Power Supply (Converter)
Input:200-330VDC
Output(s):Two
Output Power:1200W
Filters:EMI Filters Included
Efficiency:89%
Operating Temp.:-55°C to 85°C
Designed to Meet:MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | SOSA™
Compliance:VITA 62
Developed in alignment with the SOSA™ Technical Standard
Standard Configurations
Model Power Output 1 Output 2
M4703-100 1200W 12V @ 105A aux_3.3V @ 30A
M4703 Additional configurations available

* All of our products can be configured to comply with EU REACH regulations. Contact Us today to learn more.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY

To see a complete listing of the unique power attributes and features of each Standard Configuration of this product, please download the associated Catalog Page in the Resources section below.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY
Base Specifications
Form Factor:6U
Dimensions:6U, 1"6U, 1"
Current Share:Yes
Communication Protocol: 46.11
*

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Output Range(V min to V max @ A max)
#1 V to 12V @ 105A
#2 V to aux 3.3V @ 30A
#3 V to opt 12V @ 1A
#4 V to opt -12V @ 1A
Description

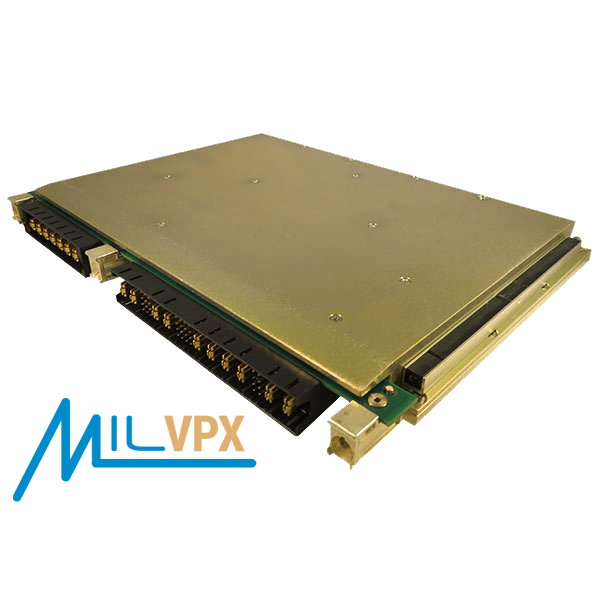

M4703 is a military grade 6U VPX, 115Vac 3 phase AC-DC, SOSA™-aligned power supply that provides 12V and 3.3VAUX per VITA 62 that is rated at 1200W output power.  Features include: conduction cooling, 1" pitch, current-sharing, internal EMI filters, VITA 46.11 system management. DC input range is 200-330V per MIL-STD-704, but variants support ranges of 125-475V per MIL-STD-704. Designed to meet MIL-STD-810 and MIL-STD-461.
