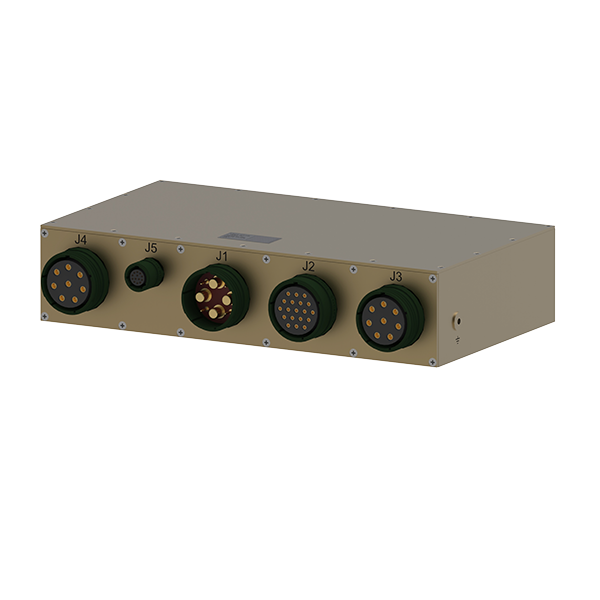

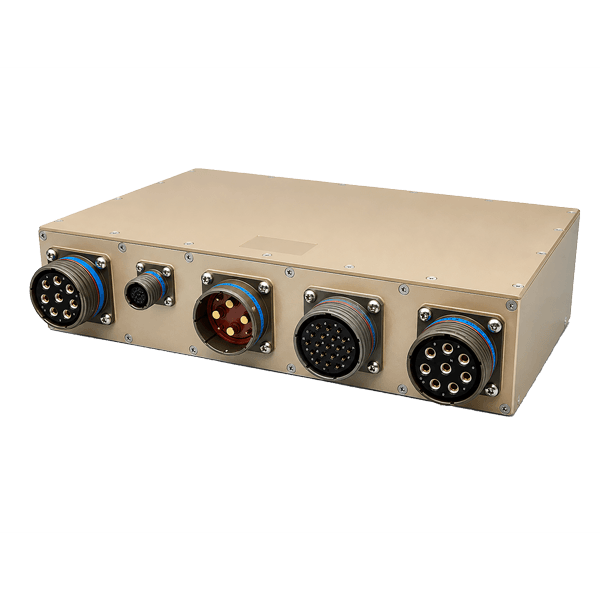

M9547 Series 16 Channels

Key Features
Product Type:PDU
Input:16-55VDC
Output Power:200A
Operating Temp.:-55°C to 85°C
Designed to Meet:MIL-STD-704 | MIL-STD-810 | MIL-STD-461 | RTCA-DO160 | EN2282
Standard Configurations
Model Power
M9547-100 200A
M9547 Additional configurations available

* All of our products can be configured to comply with EU REACH regulations. Contact Us today to learn more.

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY

Custom Designed Solutions

For all your requirements, we’ll custom design a solution for your needs

CONTACT US TODAY
Base Specifications
Weight:141.1oz4000g
Dimensions:11.54" X 2.5" X 6.25"293.12mm X 63.5mm X 158.75mm
Communication Protocol: Ethernet optional
*

Product specifications and features subject to change without notice.
Please contact our factory before placing order.

Description

The M9547 series is a 16-channel power distribution unit, designed for airborne and ground applications. It distributes 28VDC through overload and short-circuit protected switches. The M9547 series supports Ethernet communication to control, configure and get the status of the device.

Resources
3D Model (STEP file)
Tailored Products to Meet Your Requirements
mots

Modified Off The Shelf Solutions

All of our products can be configured to your specific requirements. Customers are invited to work with a design engineer to define the output, input range, protection limits and dimensions of the power solution which best meets their project needs. This can frequently be accomplished without NRE. Use the contact form to submit a request, or contact us to discuss your requirements. For our US team call (603) 267-8865, for our European team call: +41-41-740-4554. Configurations created for specific requirements will be assigned a new variant part number.
